I.Chassis parameters:

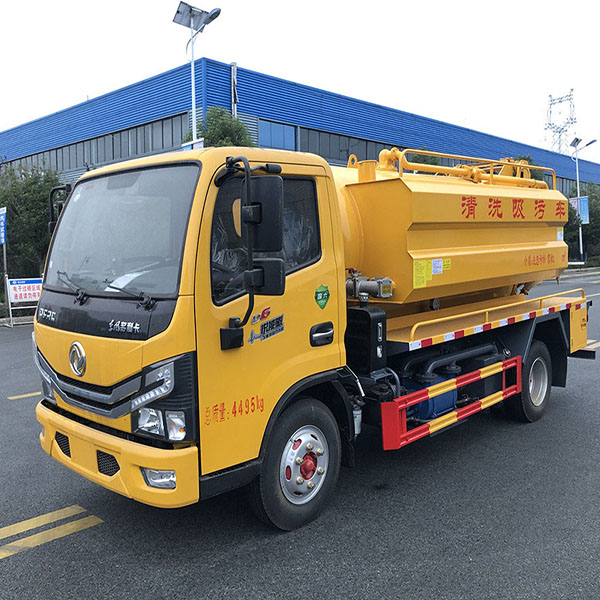

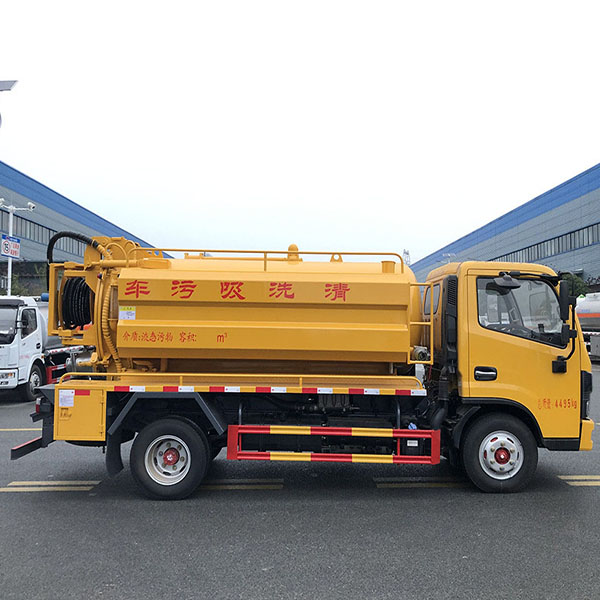

The chassis adopts Yuchai 140 horsepower, wheelbase 3308mm, national six emission standard, with intercooling supercharging, original ABS anti-lock system, original direction power, original air conditioning, electric doors and Windows, remote control key, 7.00R16 steel wire tire, air brake brake, new interior.
II.Top configuration

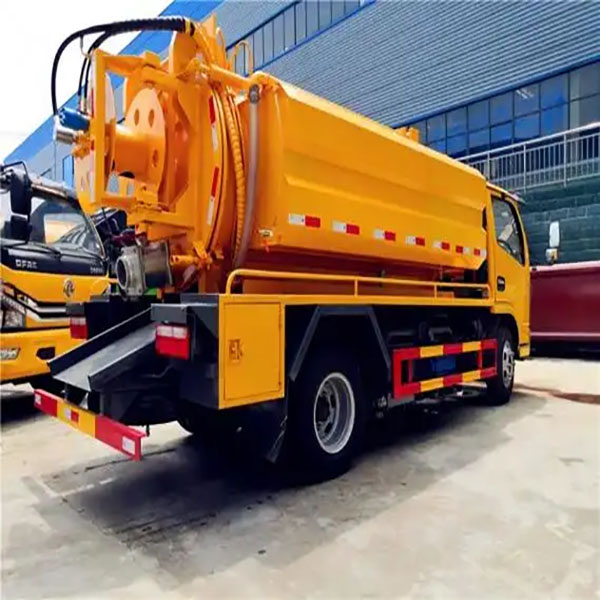

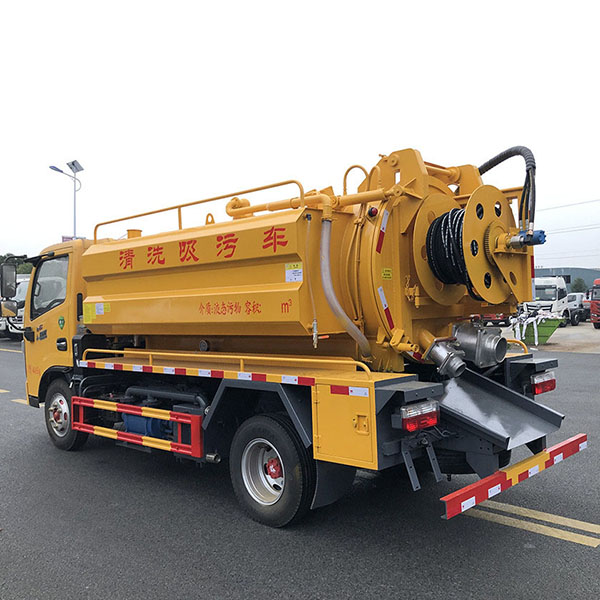

Fouling part:4 square pollution tank, tank 5mm Q235 high-quality carbon steel, with Shandong Zibo SK-9 water circulation pump, 8 meters suction pipe, intake pipe plus filter, true air overflow valve, back cover buckle lock, according to pollution measurement pipe, after the tail of a Rio Tinto brand 100mm ball valve are equipped with outlet, tank with lifting function, the back door with hydraulic open. Cleaning part :2 square water tank, using 4mmQ235 high-quality carbon steel plate, water inlet on both sides of the water tank fire interface, a toolbox. The use of German product float high pressure pump 170 liters flow, 24 mpa, with 60 meters of inner diameter 19# high pressure pipe, 10 different sizes of a set of nozzles, post-cleaning coil, with a shower device (for washing the high pressure pipe after dredging the pipe above the remaining dirt), with air blowing water function (for blowing out the internal residual water stain after each high pressure pipe work, Prevent freezing in cold weather to affect the next use)
III.Details of on-board accessories:
1.One vehicle chassis manual, 2. One chassis certificate, 3. One whole certificate, 4. One manual, one warranty manual, one user *, and one vehicle tool.
