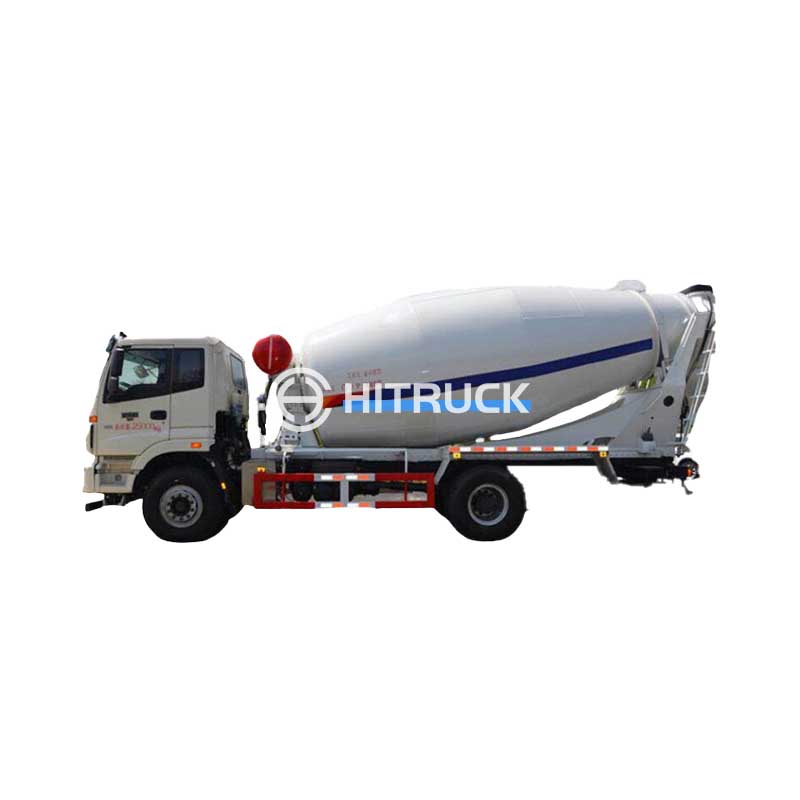

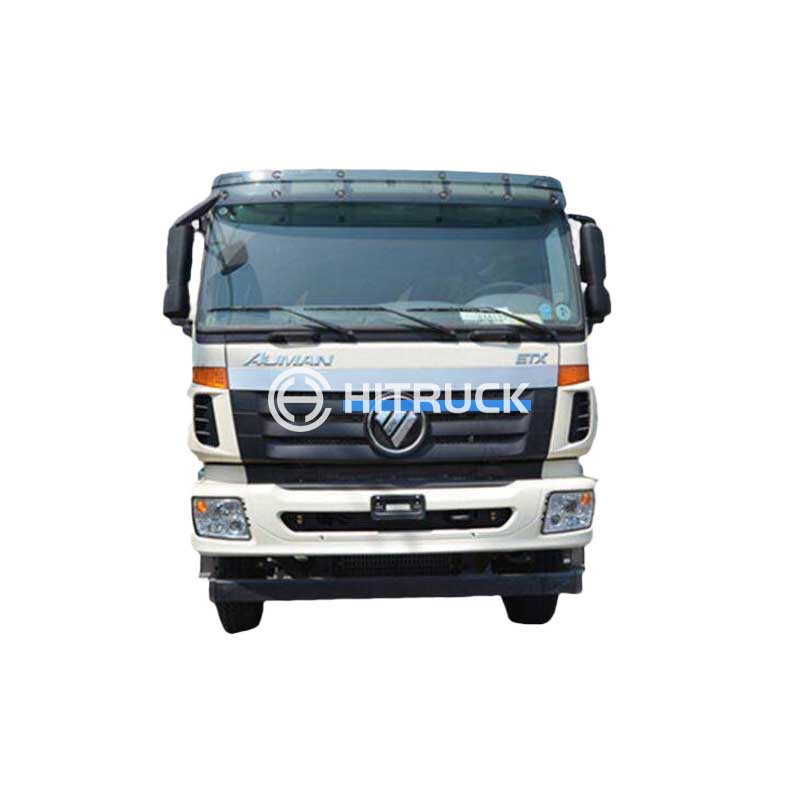

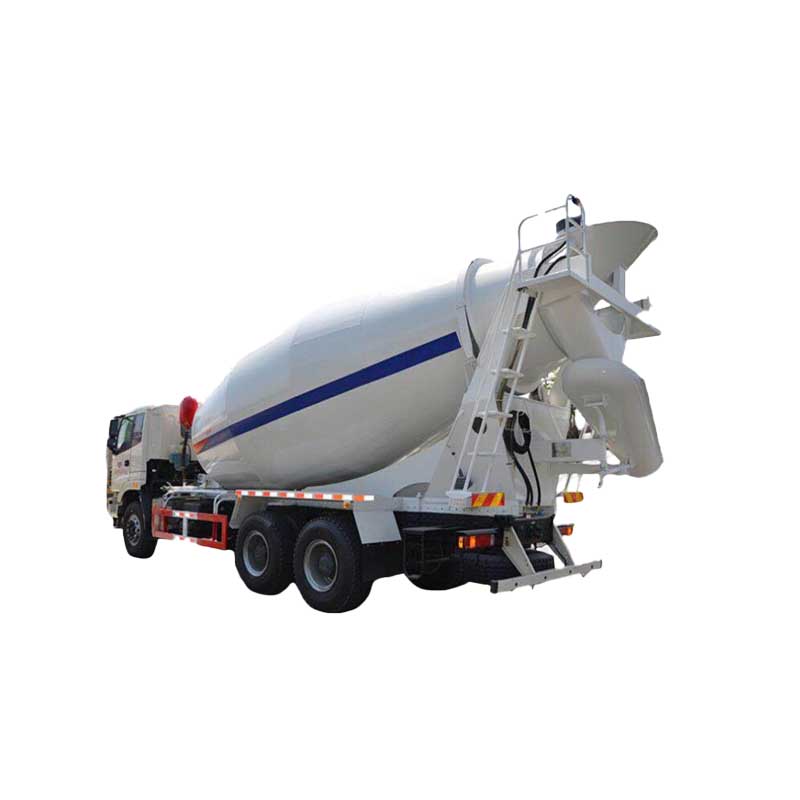

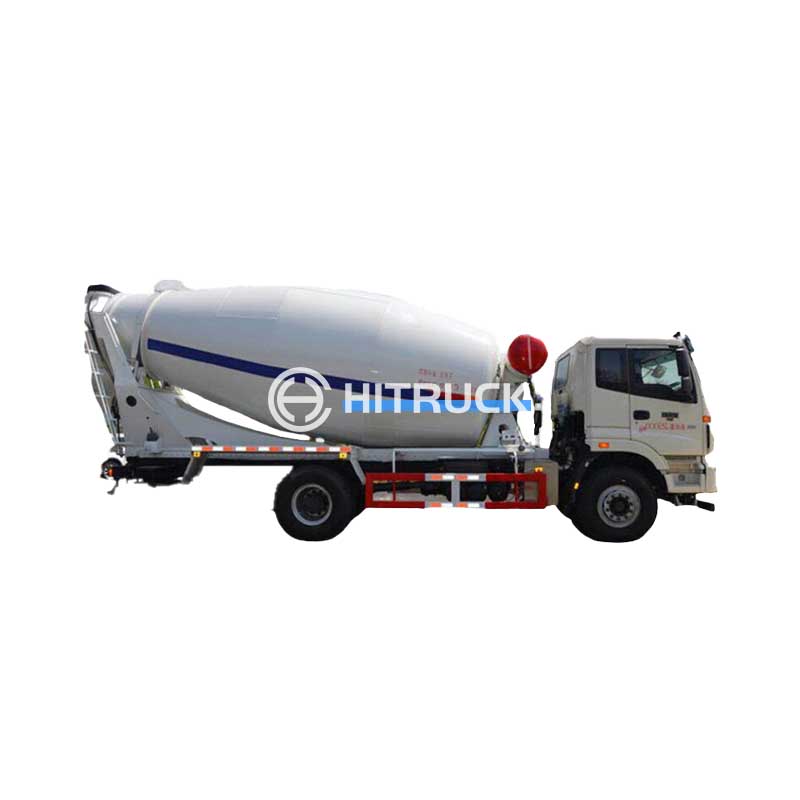

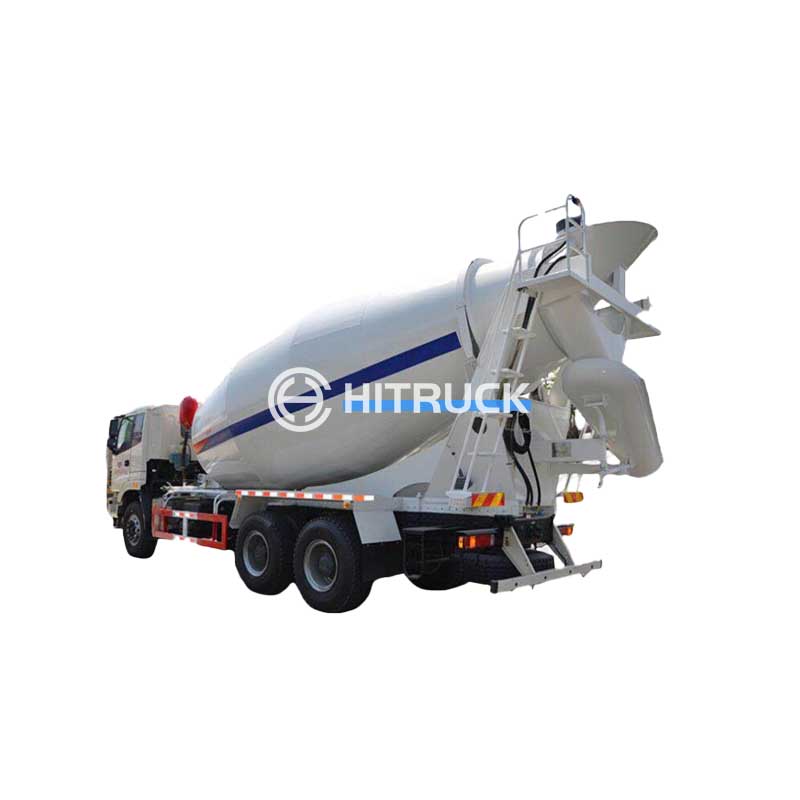

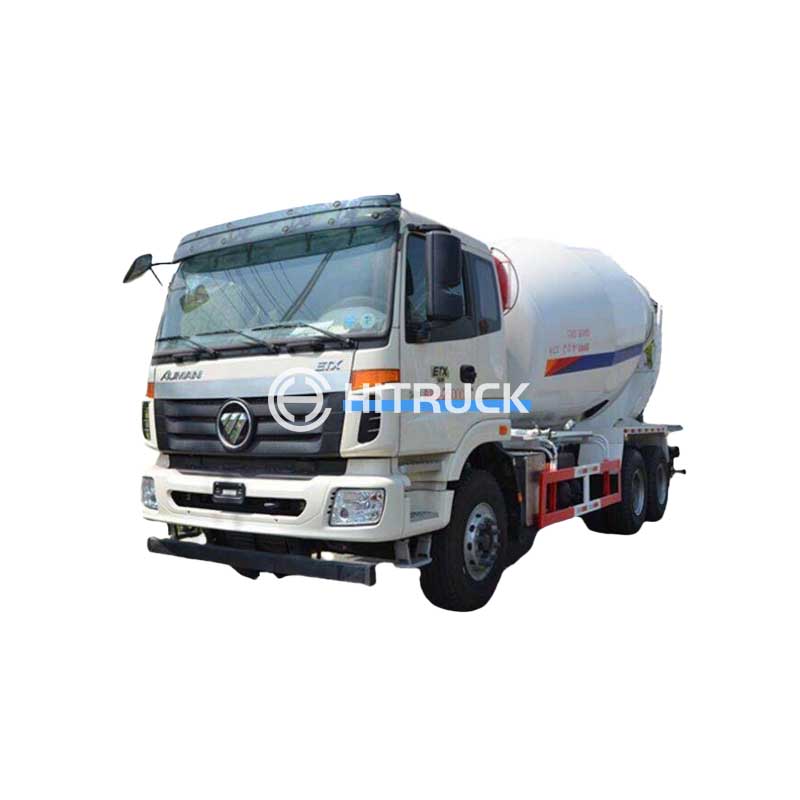

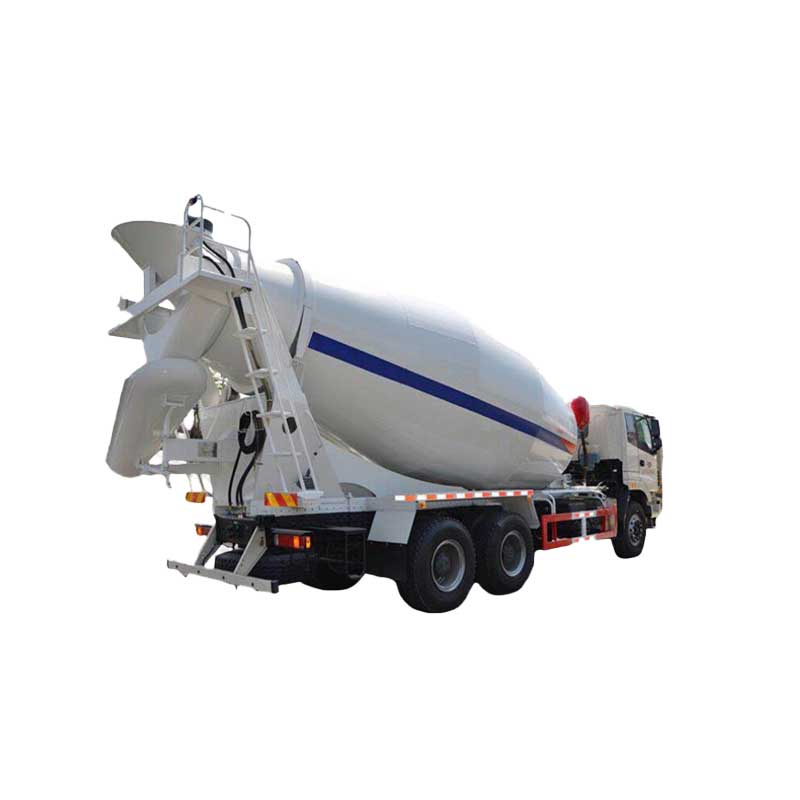

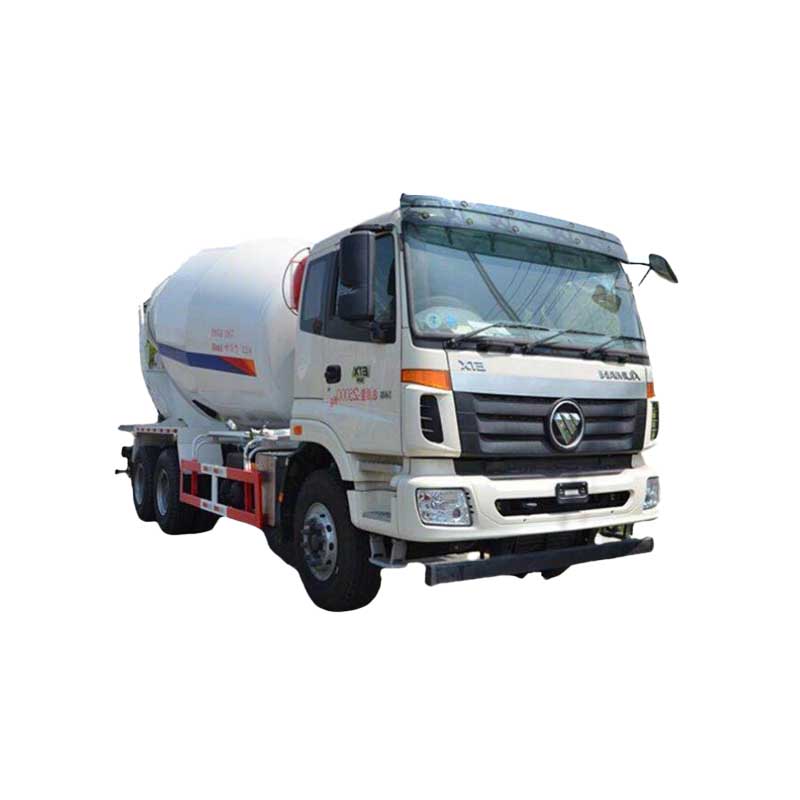

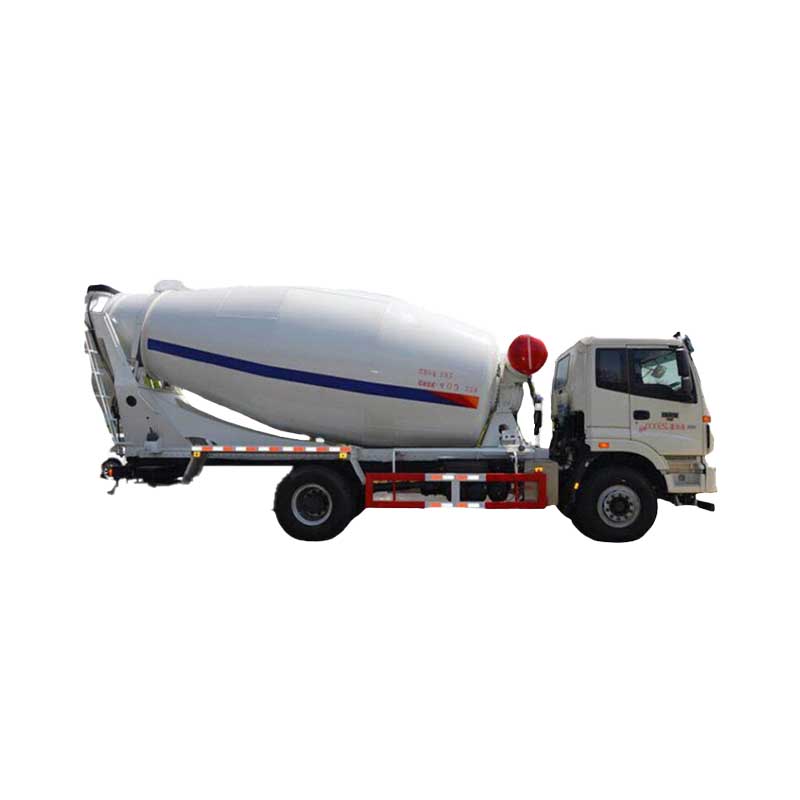

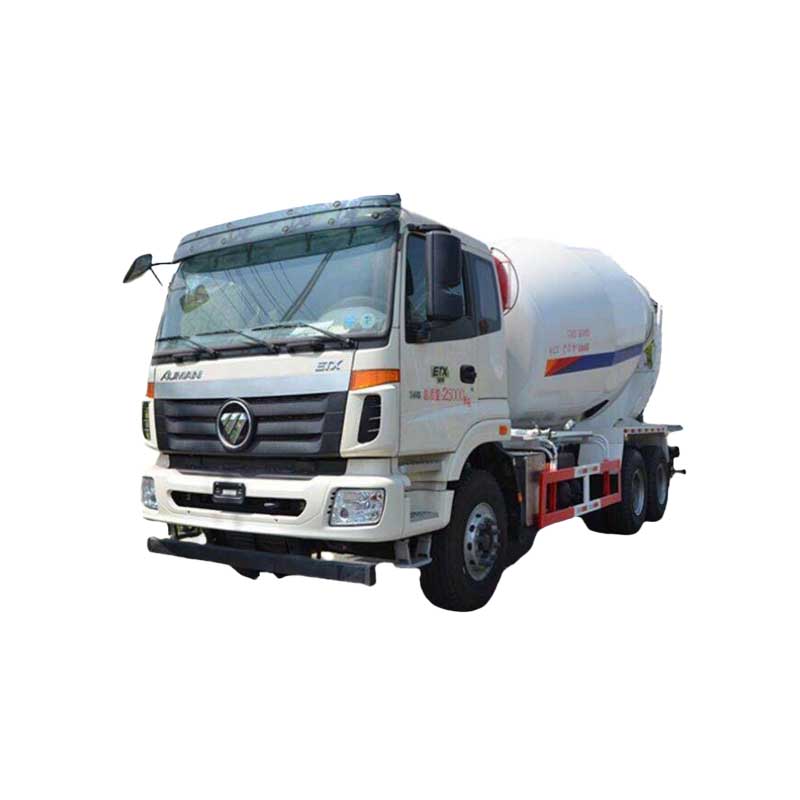

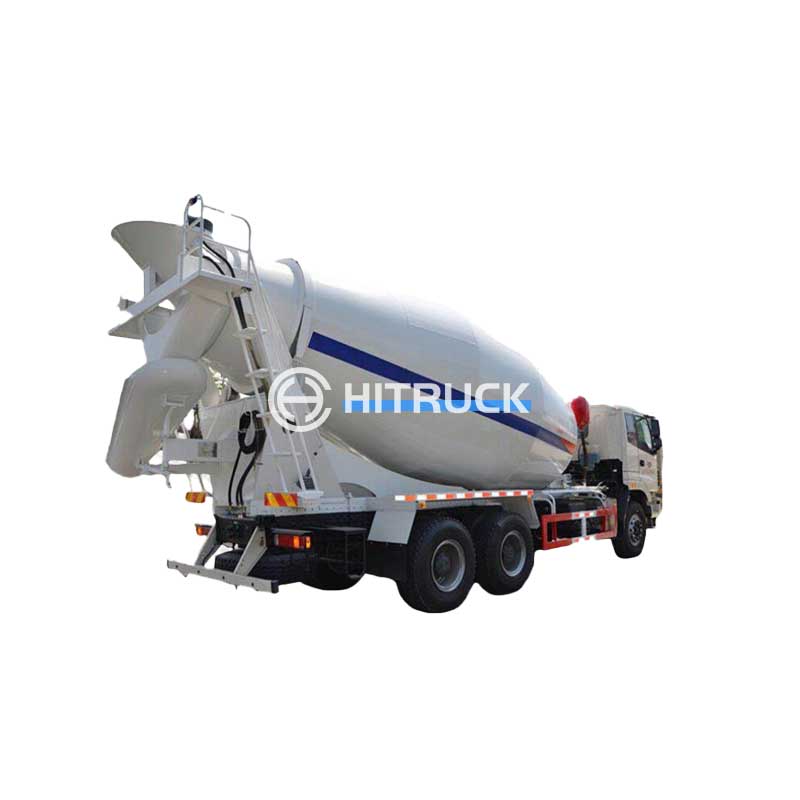

Fukuda Oman 15 square mixing truck chassis parameters Vehicle Name: Futian Oman 15 side truck Engine Weichai 375 hp — National five Volume (ml) 11596 Overall dimensions（mm） 10510x2495x3969 Mixing volume 15m3 Total weight (kg) 25000(Kg) Service weight (kg) 14500(Kg) Rated mass ...
| Vehicle Name: | Futian Oman 15 side truck | Engine | Weichai 375 hp -- National five |
| Volume (ml) | 11596 | Overall dimensions（mm） | 10510x2495x3969 |
| Mixing volume | 15m3 | Total weight (kg) | 25000(Kg) |
| Service weight (kg) | 14500(Kg) | Rated mass (kg) | 10370(Kg) |
| Number of spring pieces | 13/14/12,Left 14 right 13/Left 14 right 13/12 | Axle load | 6500/6500/18000 |
| Wheel base | 4300+1350 | Maximum speed | 83(km/h) |
| Speed changing box | Shaanxi gear 9 (torque 1800) | Front and rear axles | 9 ton front axle and 16 ton rear axle |
| Number of tires | 10+1 | Wheel specification | 12.00R20 Original steel wire tyre |
| Front gauge | 2022.2041 | Track rear | 1830/1830 |
